BⅡ series

This product is a machine type electric screwdriver, which is a screw tightening tool suitable for various automatic screw locking equipment.

Product Details

1. This product is a machine type electric screwdriver, which is a screw tightening tool suitable for various automatic screw locking equipment.


2. The control switch adopts photoelectric induction (patented design) and Hall magnetic induction switch, no contact, no mechanical wear, with long service life and good reliability.


3. The product control mode is simple, the wiring is convenient, the installation is easy, and the clamping repeatedly positioning accuracy is high.

Product Parameters

Input voltageDC 30V
Rated power45W
Specification and modelBSF110/BSE110SBSF216/BSE216SBSF320/BSF320SBSF525
Torsion rangekgf.cm1-102-163-205-25
N.m0.098-0.980.196-1.570.294-1.960.490-2.45
Lbf.in0.867-8.681.734-13.872.601-17.344.339-21.69
Torque accuracy (%)±5±5±5±5
Torque adjustmentsteplesssteplesssteplessstepless
No-load speed (rpm)1000/20001000/20001000/20001000

Applicable screw

Diameter (mm)

Mechanical teeth (mm)2.0-3.02.3-3.52.6-4.03-4.5
Self-tapping teeth (mm)1.6-2.62.0-3.02.6-3.52.6-4.0
Suitable for screwdriver headø4/ø5/HEX5/6.35(1/4')ø5/HEX5/6.35(1/4')ø5/HEX5/6.35(1/4')ø5/HEX5/6.35(1/4')

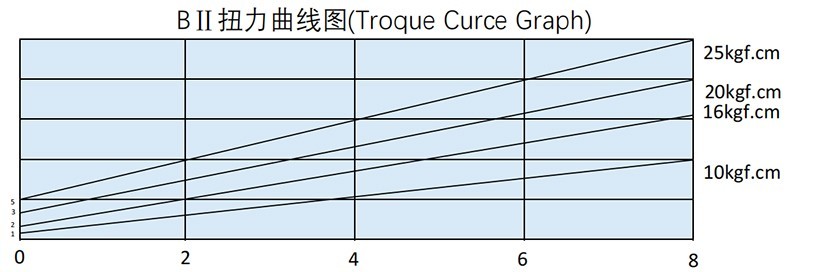

Torsion curve diagram
